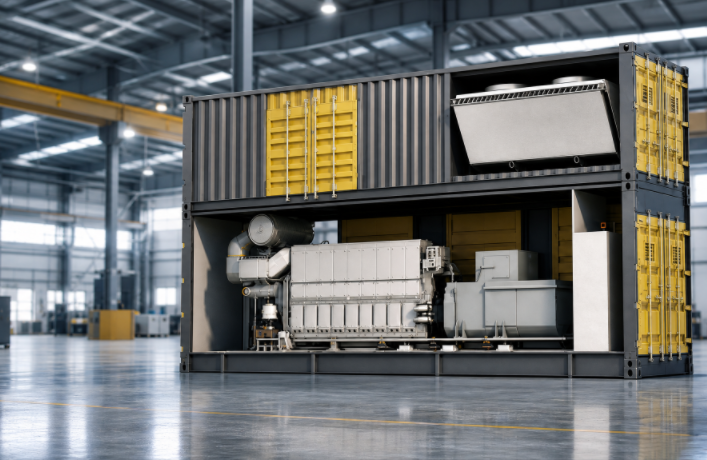

'Stack Power 2000' 2MW Containerized HFO Generator Set

CONVERGE STRENGTH.FORGE THE FUTURE.
√ RAPID DEPLOYMENT

√ MODULAR INTEGRATION

√ COST REDUCTION AND EFFICIENCY IMPROVEMENT

'STACK POWER 2000' SERIES

SP2000 Technical Specifications

Genset Power:1880KWe

Engine Power:1980KW

Rated Speed: 900RPM / 1000RPM

Genset Output: 2350KVA(Power Factor 0.8) / 2088KVA(Power Factor 0.9)

Rated Voltage: 6300V/10500V/13800V

Rated Frequency:60HZ / 50HZ

Dimensions:

Upper Container: 12192*2438*2896mm

Lower Container: 12192*2438*2896mm

Weight:

Upper Container: 100000KG

Lower Container: 45000KG

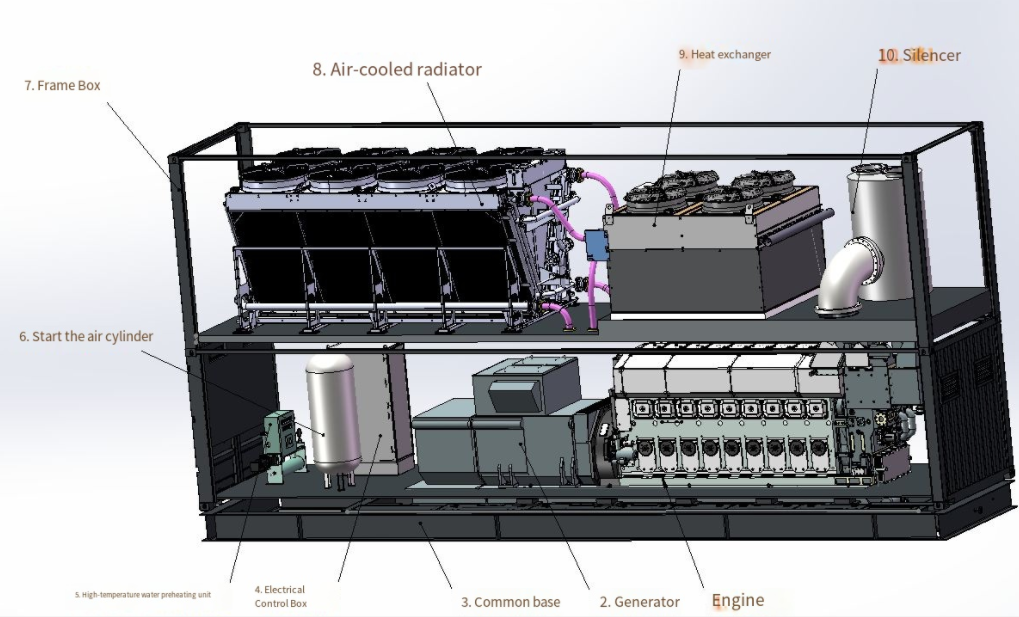

SYSTEM CONFIGURATIONS
Engine
Generator
Common Base
Electrical Control Box
High-Temperature Water Preheating Unit
Starting Air Bottle
Frame Housing
Air-Cooled Radiator
Heat Exchanger
Muffler

ADVANTAGES
Economy: Saves 20% on fuel costs compared to high-speed units
Energy Saving: Saves 70,000 kWh of electricity annually compared to conventional heavy-duty tank-type units
Time and Efficiency: Shortens on-site implementation time by over 40%
Low Maintenance: Overhaul cycle up to 36,000 hours
Warm Weather Resistance: Adaptable to extreme temperatures, deserts, and high-altitude areas

APPLICATION SCENARIOS
Mines
Manufacturing Enterprises
Industrial Parks
Equipment Leasing
