Stack Power 2000 Series HFO Generator Set Technical Introduction
Highly Integrated Design

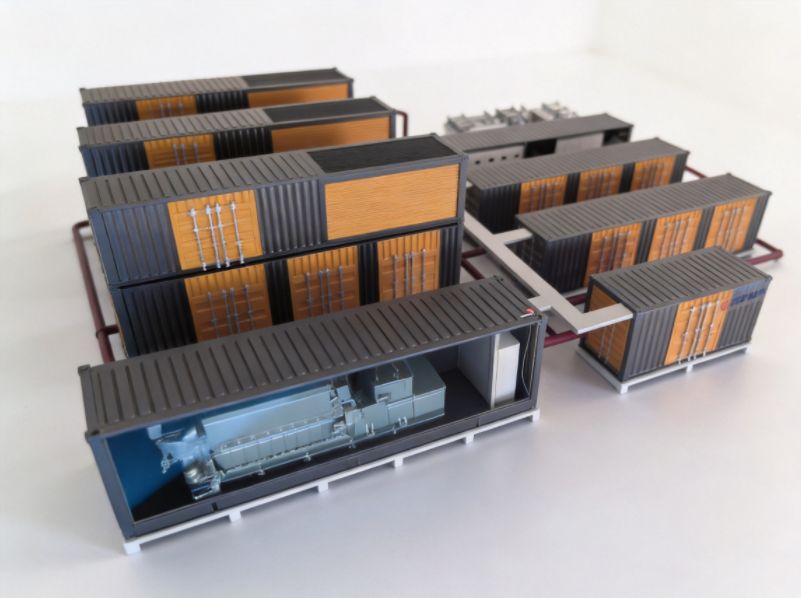

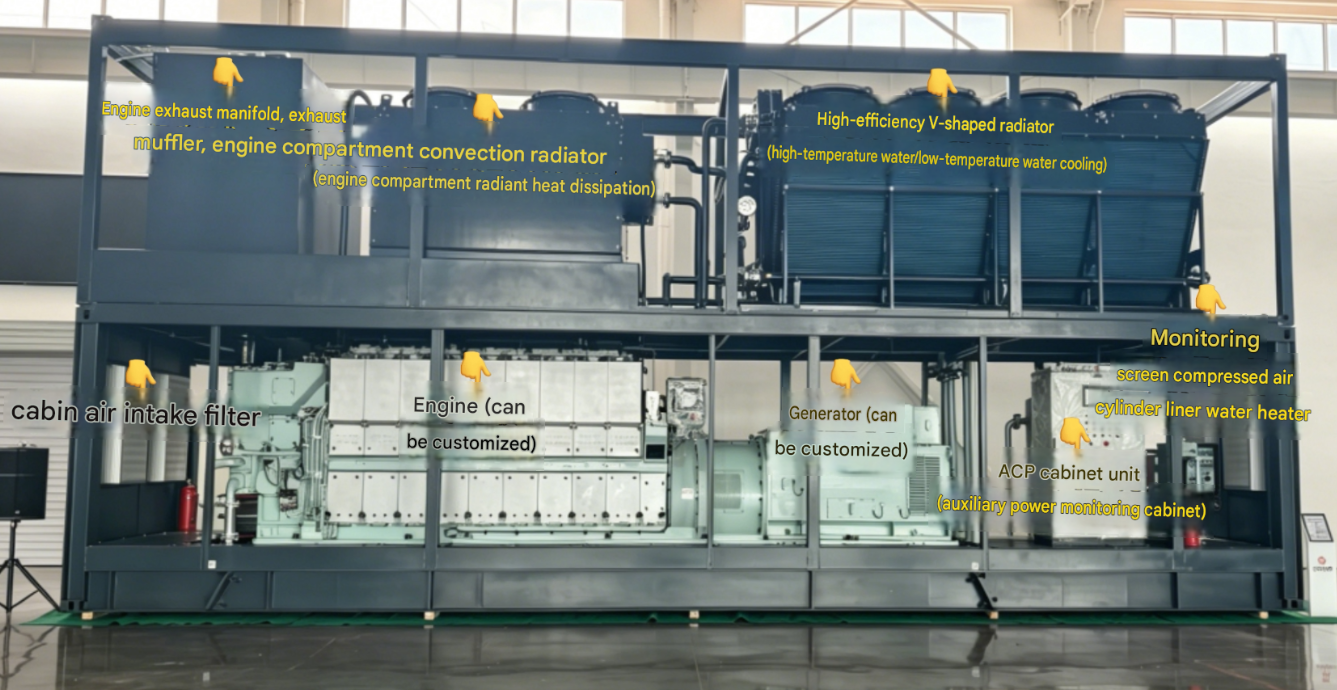

The Stack Power 2000 series adopts a stacked structure of two 40-foot containers. The entire unit fully integrates all core equipment, including the generator set, electric control cabinet, radiator, and silencer. To meet diverse customer requirements, it supports customized configuration of 6L/8L/9L generator sets, as well as customized integration of ORC systems, heat pumps and waste heat boilers, realizing highly integrated and personalized power station solutions.
Technical Specification
|
SP2000
|
Technical Specification
|
|
Genset Power
|
1880KWe
|
|
Engine Power
|
1980KW
|
|
Rated Speed
|
900-1000 RPM
|
|
Alternator Output
|
2350KVA
|
|
Rated Voltage
|
6300V, 10500V, 13800V
|
|
Rated Frequency
|
60HZ 50HZ
|
Core Advantages
✓ Rapid Deployment: Only on-site hoisting, simple assembly and wiring are required. The overall construction period is reduced by more than 40% compared with traditional power stations.
✓ Economic and Energy-Saving: It achieves a 20% reduction in fuel consumption compared with high-speed generator sets. Equipped with a central vertical radiator, the system saves 10 kWh of electricity per hour compared with conventional cooling modes, delivering outstanding energy-saving benefits.
✓ Low Operation and Maintenance Costs: The engine features an overhaul interval of up to 36,000 hours and a design service life of no less than 20 years, greatly reducing long-term O&M investment and downtime losses.
✓ Full Weather Adaptability: The unit is adaptable to extreme temperatures, desert environments and high-altitude areas, ensuring stable and reliable operation under harsh working conditions.
Application Scenarios
✓ Self-contained power stations for overseas industrial and mining projects
✓ Large-scale power plants
✓ Generator set rental market
✓ Power supply for islands and remote power-shortage areas
Design Concept of Stack Power Series
BFMP adheres to the technical route of high-power medium-speed engine power stations. Different from conventional box-type HFO power stations in the market, the Stack Power series achieves comprehensive upgrades in overall dimensions, cooling efficiency and energy-saving performance. With high flexibility, strong adaptability and fast deployment capabilities, the product is highly tailored for the global generator set rental market, meeting the short-term and long-term power supply needs of various temporary and fixed projects.
